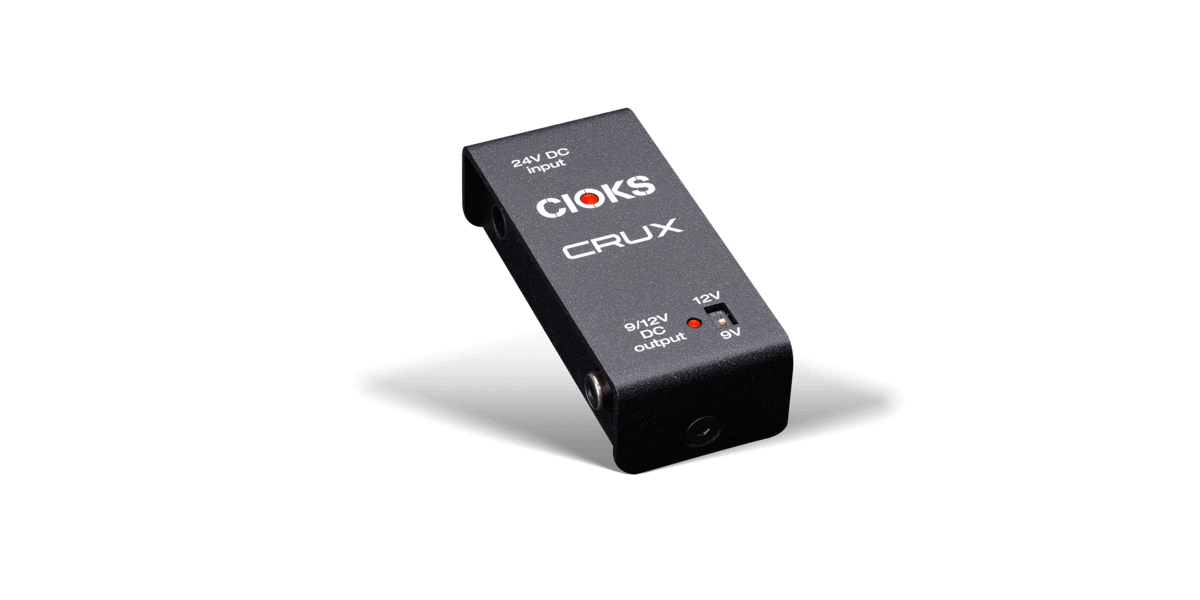

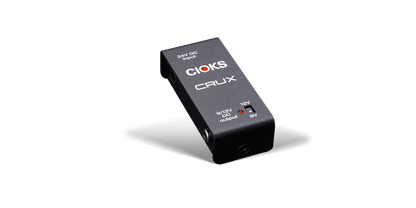

• Best Damn Cable Co Cioks Crux power expander with 24V input and selectable 9V or 12V DC output
1 2

Best Damn Cable Co.

Cioks Crux

Cioks Crux

$89.00 USD
$89.00 USD
Sale Sold out

2 in stock

CIOKS CRUX is the ultimate add-on to CIOKS DC7 if you are using a Neural DSP Quad Cortex, a Line 6 HX-series pedal or another power-hungry 9V or 12V multi-effects pedal. Simply connect the CRUX to the 24V outlet on DC7, set the correct voltage on CRUX, connect the appropriate CIOKS Flex cable from CRUX to your multi-effect pedal and you are good to go.

Using CRUX frees up the outlets on DC7 that would otherwise be needed to run these devices (for instance four for a Neural DSP Quad Cortex and two outlets for a Line HX Stomp), allowing you to run more pedals along with your multi-effects device. CRUX therefore provides a simpler, more reliable setup and gives you more options for connecting additional pedals.

Features

  • CIOKS SOL has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7
  • Ultra-low noise achieved by multistage filtering
  • 5 isolated DC-outlets, 6W each
  • 660mA at 9V on each outlet
  • 4 selectable voltages on each outlet • Total maximum power 30W
  • Mounting hardware for Pedaltrain and Templeaudio Boards included
  • Compatible with CIOKS GRIP v2.0 for drill-free mounting underneath Pedaltrain boards*
  • 9 Flex cables included
  • Designed in Denmark, assembled in Poland
  • 5-year worldwide warranty

*Sold separately

Specifications

  • Mains input: 100-240V AC universal
  • Outlet 1-5:
  • 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each Total output power: max. 30W

What's Included?

  • CIOKS 4 has the same groundbreaking 1-inch profile (25,4mm) as
  • CIOKS DC7
  • Ultra-low noise achieved by multistage filtering
  • 4 isolated DC-outlets, 6W each
  • 660mA at 9V DC on each outlet
  • 4 selectable voltages on each outlet
  • 5V USB C Input for powering the unit with a powerbank or USB C adapter
  • Non-polarized DC input socket which accepts anything from 9-24V DC or 9-12V AC
  • Global overload status LED
  • Total maximum output power 24W*
  • Mounting hardware for Pedaltrain and Templeaudio boards included
  • Compatible with CIOKS Mini GRIP for drill-free mounting on Pedaltrain boards*
  • 5 Flex cables included
  • 5-year worldwide warranty
  • *Sold separately
